How to fix “the selected disk has an mbr partition table”


Summary

This tutorial article mainly tells detailed guiding steps to assist you in fixing "the selected disk has an MBR partition table". If you happen to occur this problem, please read this article right now.


When you install the Windows operating system on your computer, you may often run into an annoying error that prevents you from successfully installing the system on your PC. The error message might be "Windows cannot be installed to this disk. The selected disk has an MBR partition table". The error "the selected disk has an MBR partition table" is very common which appears on many Windows versions such as Windows 7, Windows 8, Windows server 2008, etc.

About MBR

MBR (Master Boot Record) is the old style of disks and is widely used by users. For MBR disks, you can create 4 primary partitions at most and the maximum size of each disk is 2 TB. In order to create more partitions, you have to build a structure of less than 3 primary partitions + one extended partition. The extended partition is a logical part of a hard disk, it can be used to create more logical partitions.

GPT (GUID Partition Table) is the latest disk style. As for GPT disks, you are able to build unlimited partitions on the hard disk. So, in order to install successfully, you need to convert MBR into GPT.

Solutions to fix “the selected disk has an MBR partition table”?

Solution 1: Change BIOS boot settings

You can go through the BIOS setting and change the UEFI boot configuration. What you need to do is temporarily switching EFI boot to SATA or legacy mode so that Windows can be installed to Legacy + MBR booted the computer.

        1. Restart the computer and enter BIOS by pressing Del or F10 before system boots.
        2. In BIOS, go to Boot Devices and find Boot order where you can disable EFI sources or change DVD drive from UEFI to SATA or Legacy Mode.
        3. Save changes and exit.
        4. Boot computer with system installing CD or disk and try to install again.

Solution 2: Convert MBR disk to GPT using the command line

For the moment, your hard drive is of MBR style while BIOS is set to UEFI boot mode. Thus another way to solve this error is converting MBR partition table to GPT. When the disk is converted to GPT, you will no longer face the issue.

Many guides on the Internet suggest converting MBR to GPT, but that will erase all partition and data on the disk. You should make sure all the important files are backed up. The most convenient and easy method to convert MBR to GPT is using the command line.

Convert MBR to GPT during Windows installation using command prompt:

       1) During installation, press Shift + F10 to open command prompt window
       2) Type Diskpart into cmd window.
       3) Type list disk. Make a note of the disk number you want to delete or convert.
       4) Now type select disk DiskNumber. By using this command you select the drive in which you want to any operation.
       5) Now type clean.
       6) Running the clean command will delete all partitions or volumes on the disk.
       7) At the command prompt, type "convert gpt". It will convert the selected drive into GPT.

If you lose important data in the conversion process or after formatted partition, you need to restore the lost data with third-party data recovery software.

How to recover the lost file?

Download and install Bitwar Data Recovery Software by click below links. Then follow the next simple steps to perform file recovery.

Tips: Remember not to save files or install the program to the disk when your system is installed. Recover the lost data first.


 Bitwar Data Recovery for Windows download Bitwar Data Recovery for Mac download


Step 1: Launch Bitwar data recovery program and select "Formatted Disk Recovery" when you want to recover lost files.


fix “the selected disk has an mbr partition table”



select the target disk and click next.


fix “the selected disk has an mbr partition table”

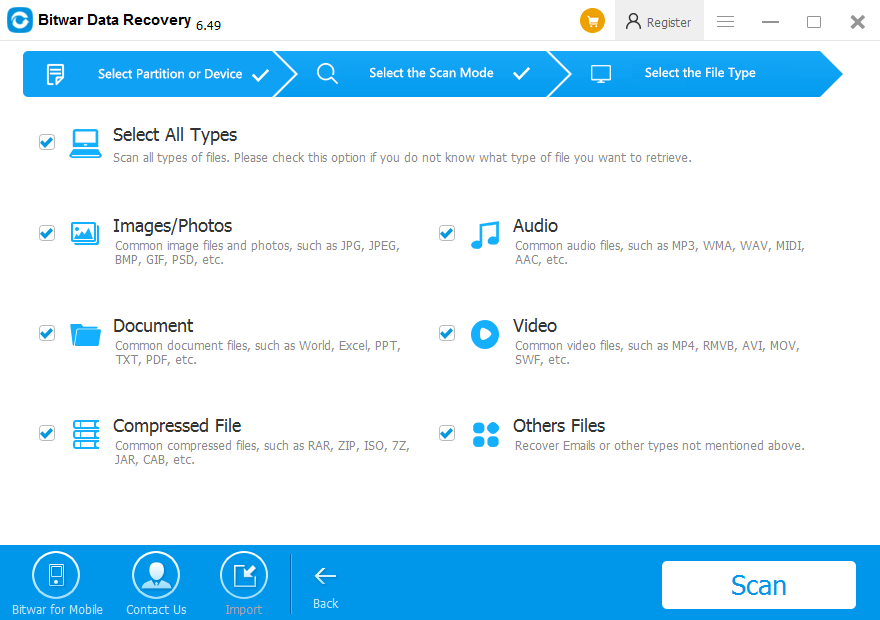

Step 2: Select target file types and click "Next". If you want to recover all types, choose "Select All Types" and click "Next" to start scanning.

fix “the selected disk has an mbr partition table”

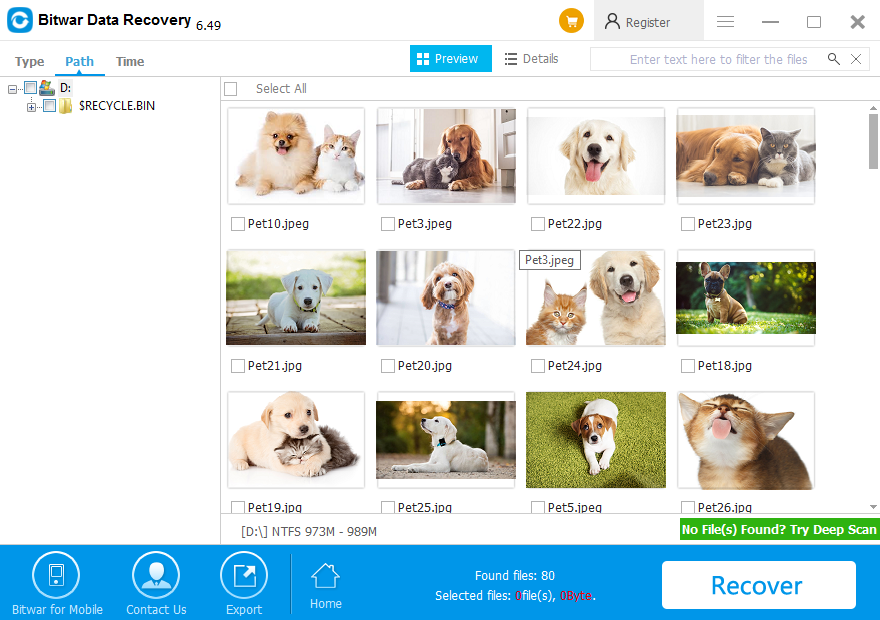

Step 3: During the scan, the eligible files will be listed. If there is too much scanned data, you can filter by the file type, path, and time in the left tree list. You can also preview the thumbnail of the files by double-clicking them. Then select the files you want and click "Recover" to save them to a new path. If you have not scanned this data on step 3, you can go back to step 1 and choose "Deep Scan".

Note: Do not save the file directly to the disk during the data recovery.




fix “the selected disk has an mbr partition table”


Through the above steps, your lost data will be able to recover successfully. Therefore, make sure you have back-up data or have Bitwar Data Recovery Software if you decide to start this process.


Bitwar Data Recovery for Windows download Bitwar Data Recovery for Mac download
